Why Your Circuit Breaker Keeps Tripping: Causes and Fixes

Understanding Common Circuit Breaker Problems

A breaker keeps tripping because the circuit it protects is drawing more current than it safely can, or because current is escaping somewhere it shouldn't. The three most common causes are an overloaded circuit, a short circuit and earth leakage, which is often caused by moisture or a faulty appliance. Less often, the breaker itself is worn or has a loose connection.

Resetting it again and again doesn't fix any of these. Finding the pattern does.

First, check which switch tripped

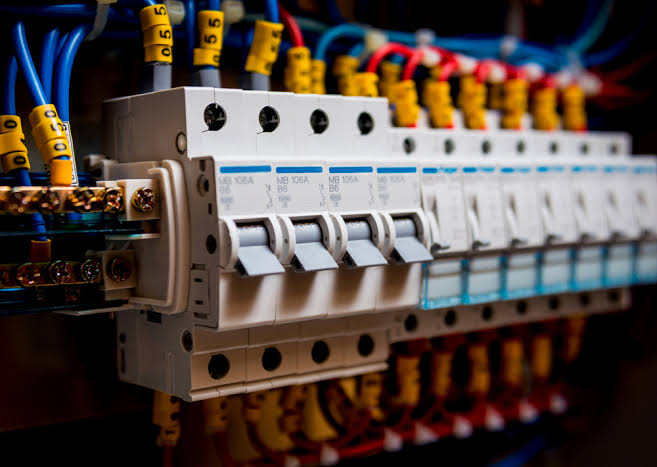

Most villas and apartments in the UAE use a British-style distribution board (DB board). Open the cover and you'll usually see three kinds of device, and each one trips for a different reason.

• MCB (miniature circuit breaker): a narrow switch for one circuit, marked with a rating such as B16, B20 or C32. It trips on overload or short circuit.
• RCD (residual current device): a wider switch with a small test button marked "T". Many people in Dubai still call it the ELCB. It watches for current leaking to earth and usually protects several circuits at once.
• RCBO: looks like an MCB but has a test button. It combines both jobs for a single circuit.

Take a photo of your board and note which switch controls what. Boards in older buildings are often badly labelled, and you'll save time later.

The most common causes

An overloaded circuit

This is the classic MCB trip. The kitchen is the usual suspect: a kettle, microwave, air fryer and oven sharing one circuit can easily pull more than it's rated for. Ironing while a heater runs on the same circuit can do the same.

The pattern is easy to spot. The breaker trips after a few minutes of heavy use, or the moment you switch on one more appliance, and it resets without trouble once the load drops.

The fix is to spread heavy appliances across different circuits, or to have a dedicated circuit added for something like an oven or a large water heater.

One thing you should never do is swap the breaker for a higher rating. The rating is matched to the cable. A bigger breaker lets the cable carry more current than it was designed for, so it heats up instead of tripping, which is exactly the situation the breaker exists to prevent.

A short circuit

A short happens when a live conductor touches neutral or earth. Common causes include a damaged plug or cord, a loose wire inside a socket, a faulty appliance, or a screw driven through a hidden cable while mounting a TV or shelf.

Shorts tend to trip the breaker instantly, sometimes with a pop or a spark, and the breaker may refuse to stay on. If it still trips with everything unplugged, the fault is in the fixed wiring and needs an electrician.

Earth leakage (the RCD keeps tripping)

In UAE homes, water is behind a lot of RCD trips. A blocked AC condensate drain can leak into the ceiling and drip into a light fitting. Outdoor sockets and garden lights can take in water from irrigation or one of the occasional heavy rains. Bathroom fans and balcony lights are frequent offenders too.

Water heaters deserve a special mention. If the RCD trips every time you switch the heater on, the heating element is very often breaking down and leaking current. The element usually needs replacing, and the heater shouldn't be left in use until it's checked.

Washing machines, dishwashers and fridges can cause the same problem as their insulation ages.

There's a less obvious cause as well. Many modern devices (computers, chargers, LED drivers) each leak a tiny amount of current to earth. Put enough of them on one RCD and the total can push it over its limit, causing what electricians call nuisance tripping. Splitting circuits across more RCDs, or fitting RCBOs, usually solves it.

Air conditioners

In Dubai, AC is usually the biggest load in the home, and AC circuits trip for their own reasons: a failing start capacitor, a compressor drawing too much current at start-up, dirty coils making the unit work harder, or a loose connection at the isolator.

If the AC breaker trips when the compressor starts, avoid resetting it over and over, since repeated starts put extra strain on the compressor. Have the unit checked by an AC repair technician, who can test the capacitor and current draw.

A worn breaker or loose connection

Breakers are mechanical devices, and they wear out. DB cupboards in UAE homes can get hot, especially in summer, which doesn't help. Loose terminal screws create resistance and heat, and that can cause trips even when the load is light.

Warning signs include a breaker that feels warm, discoloured plastic, a burning smell or a buzzing sound from the board. Any of these needs a professional, and a replacement breaker should always match the original's rating and type.

A safe step-by-step check

You don't need tools for this. Keep your hands dry, don't remove the board's inner cover, and don't touch anything if there's water near the DB board.

1. Unplug everything on the affected circuit. If you're not sure what's on it, unplug everything in the rooms that lost power.
2. Reset the breaker properly. Push it fully to OFF first, then back to ON. A tripped MCB often sits in a middle position.
3. Reconnect appliances one at a time. Wait a minute or two between each. If the breaker trips as you plug something in, you've likely found the culprit.
4. For an RCD trip, isolate the circuit first. Switch off all the MCBs it protects, reset the RCD, then turn the MCBs back on one by one. The one that trips the RCD is the circuit with the fault. Then unplug appliances on that circuit and repeat step 3.
5. Write down the pattern. Time of day, weather, which appliance was running. "Trips at night" or "trips after rain" tells an electrician far more than "it keeps tripping".

It's also worth pressing the RCD's test button every few months. It should trip straight away. If it doesn't, the RCD isn't protecting you and needs replacing.

When to stop resetting and call an electrician

Call a professional if:

• the breaker trips immediately with nothing plugged in, or won't reset at all
• you notice a burning smell, scorch marks, heat or buzzing at the board
• the main switch trips, or several devices trip together
• the RCD trips after rain or a leak and you can't find the source
• there's water anywhere near the DB board
• lights flicker or dim along with the tripping
• the same breaker trips several times a week and you can't link it to anything

Electricians in Dubai handle fault finding on DB boards, MCBs and RCDs, along with board upgrades for older properties. If you rent, check your tenancy contract and let your landlord or building management know, since larger electrical repairs are often their responsibility.

Habits that make tripping worse

A few common workarounds turn an annoyance into a hazard. Holding or taping a breaker in the ON position, fitting a higher-rated breaker, and running heavy appliances from multi-plug adaptors or chained extension leads all remove the protection the system relies on. Ignoring a water heater that trips the RCD is another one, because the fault rarely fixes itself.

Preventing repeat trips

Most recurring trips can be avoided with a little upkeep:

• Give high-power appliances (ovens, water heaters, large ACs) their own circuits.
• Service AC units before summer and keep condensate drains clear.
• Fix leaks quickly, especially near ceilings, light fittings and sockets. A plumber can trace hidden leaks that keep tripping your RCD.
• Test RCDs every few months and keep the board labelled.
• Consider a regular inspection. SWEFIX's annual maintenance contracts include electrical inspections, which can catch loose connections and ageing breakers early.
